RANGER


58' STEADYSAILER

LOA: 57' 10"
LWL: 52' 1"
Hull Beam: 14' 2"
Beam/Length Ratio: 25%
Max Draft: 4' 6"
Height Above DWL: 10' 6"
Fuel: 1050 gal
Water: 340 gal
Disp: (full load) 48,900 lbs
Main Engine: Deere 4045DFM 85hp
Reduction: 3.74:1
Speed: 10 Kt
Sail Area: 831 sq. ft.

We built this 58' Steadysailer for Craig Stevens. She was the first aluminum yacht to be totally constructed under our supervision at our 12,7500 sq ft Lyman Morse Metal Fabrication facility located a short distance from our main yard. Click here for more on LM Metal Fabrication. Craig, who had at one time been a member of the John Alden design staff, commission Chuck Paine to perfect his concept for the ideal ocean cruiser. For more on the design parameters from Chuck Paine, click here.

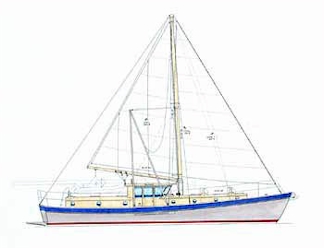

Steadysailor 58Designed to be a true motorsailer, she is a comfortable cruising yacht capable of a steady 10 knots whether under sail or power or both. Her custom interior is "relatively" simple and optimized for two-couple cruising. Her hull construction is of rugged welded aluminum.  RANGER is equipped with a pair of hydrodynamic stabilizers ("birds") that when lowered into the water from the beefed-up side vanes help to eliminate roll and provide stability at sea.

We are very excited about this project which offers a superior yacht capable of cruising the oceans of the world in refined splendor and comfort regardless of conditions encountered. Click here for construction pictures.

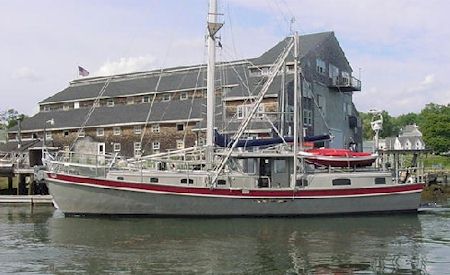

RANGER at our docks.
